Raspberry Pi 2 Model B Review
A Closer Look
(click on image for larger version)

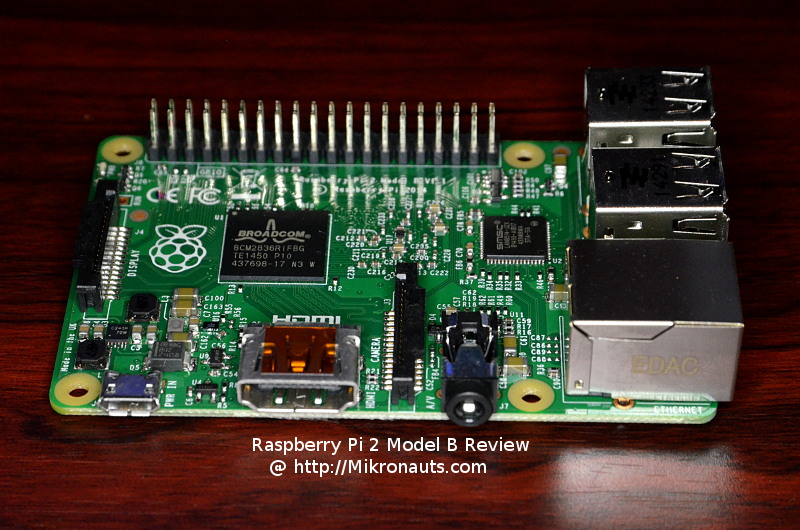

From left to right:
- uSD power jack
- HDMI jack
- CSI connector
- audio/video 3.5mm jack
- Ethernet jack
and two mounting holes, of course.
(click on image for larger version)
From left to right:
- 10/100 Ethernet jack
- two dual USB host jacks
Exactly the same as on the Model B+
(click on image for larger version)
From left to right:
- USB jack
- 40 pin GPIO header
and the mounting holes of course.
(click on image for larger version)

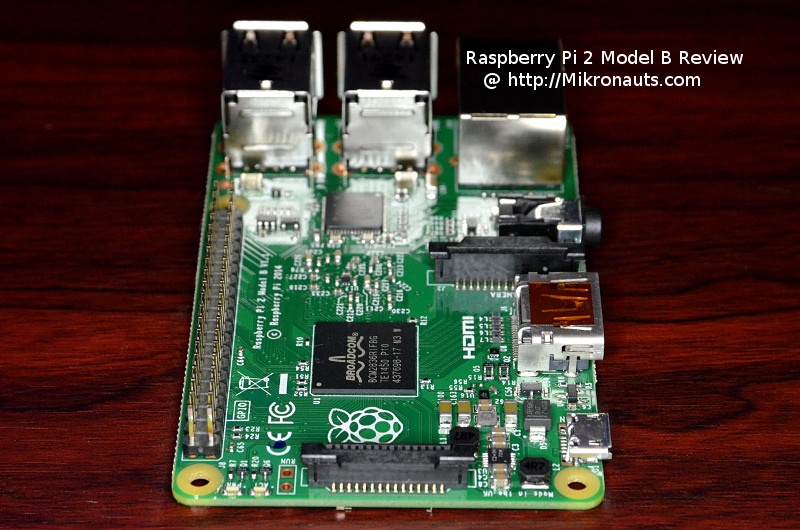

From left to right:
- run header
- DSI header
and you can see some of the power supply circuit.

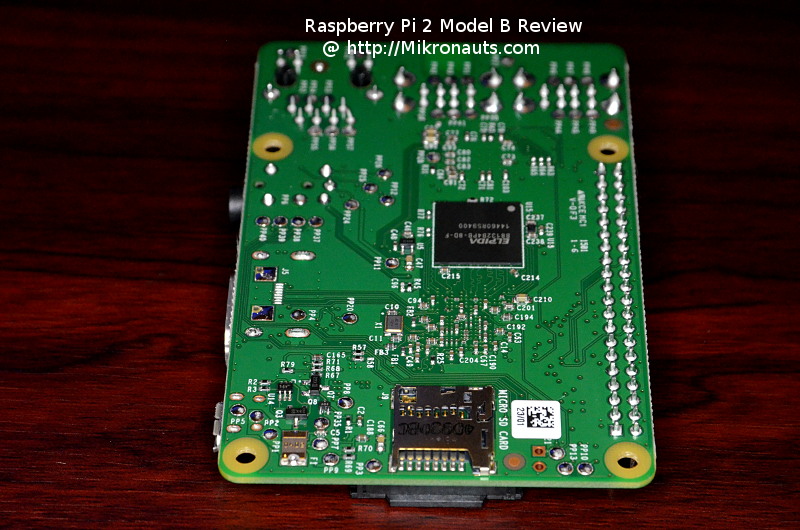

(click on image for larger version)
On the bottom you can see the push-push uSD connector.
Close to the middle of the board you see the new 1GB memory chip!
Feature Comparison
I did not list the Raspberry Pi Models A, A+, B and Banana Pi in the table below as I was running out of space, and they are very similar to their corresponding newer models. If you would like to see those feature lists, please take a look at my other reviews.
(click on image for larger version)
