Raspberry Pi 2 Model B Review

Unix Bench 5.1.3

Benchmark # cores Dhrystone Whetstone Hanoi
Raspberry Pi B+ 1 142.7 48.9 18790.9
Raspberry Pi 2B 1 253.8 90.1 34122.8
Raspberry Pi 2B 2 506.3 179.4 67640.2
Raspberry Pi 2B 4 1006.6 358.7 135452.7
MIPS CI20 1 197.8 58.6 23839.4
MIPS CI20 2 394.5 117.2 47674.7
Banana Pro 1 248.7 89.6 33920.3
Banana Pro 2 490.0 178.0 67205.1
ODROID-C1 1 348.4 113.9 40639.1
ODROID-C1 2 680.6 225.6 81299.3
ODROID-C1 4 1174.3 443.2 148415.5

Results are an index relative to a SPARCstation 20-61 (rated at 10.0)

The new Raspberry Pi 2 Model B does very well, but is trumped by the ODROID C1.

hdparm

Raspberry Pi B+ ADATA 159.6 19.5
Raspberry Pi 2B ADATA 391.1 17.5
MIPS CI20 eMMC ioctl err ioctl err
MIPS CI20 ADATA 141.2 16.7
Banana Pro ADATA 323.4 16.7
ODROID-C1 ADATA 714.5 17.7
ODROID-C1 ADATA UHS 690.2 29.3
ODROID-C1 Patriot 690.1 14.3
ODROID-C1 Patriot UHS 699.7 24.7
ODROID-C1 eMMC 709.0 77.2

Results are in megabytes per second.

UHS-1 is significantly faster than plain SD, and eMMC beats UHS-1

dd

dd media dd read dd copy dd write
Raspberry Pi B+ ADATA 18.4 5.8 9.6
Raspberry Pi 2B ADATA 18.5 6.8 10.9
MIPS CI20 eMMC 7.9 6.7 32.9
MIPS CI20 ADATA 18.5 3.7 4.8
Banana Pro ADATA 17.5 8.1 16.4
ODROID-C1 ADATA 16.5 7.3 8.1
ODROID-C1 ADATA UHS 30.4 8.0 10.0
ODROID-C1 Patriot 16.5 8.9 16.4
ODROID-C1 Patriot UHS 27.8 12.2 23.1
ODROID-C1 eMMC 80.8 11.6 14.5

Results are in megabytes per second.

The MIPS CI20 has great write rates with eMMC… and surprisingly low read rates.

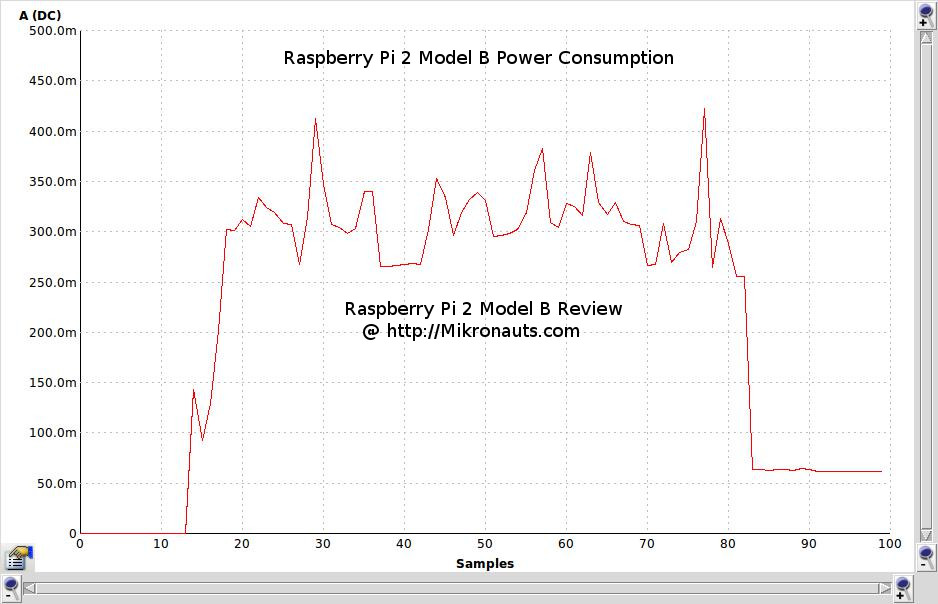

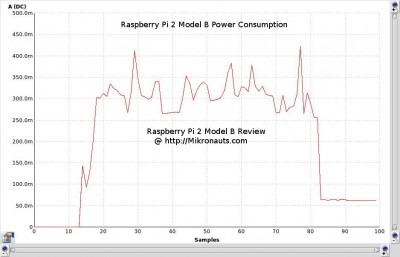

Power Utilization

Raspberry Pi 2 Model B Review     @ http://Mikronauts.com

(click on image for larger version)

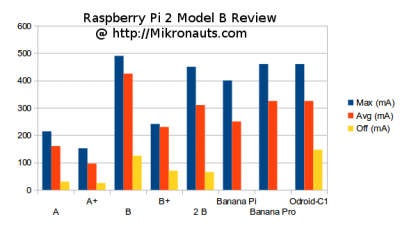

Model Max (mA) Avg (mA) Off (mA)
A 214 160 30
A+ 152 96 25
B 490 425 125
B+ 241 230 70
2 B 450 310 65
Banana Pi 400 250 0
Banana Pro 460 325 0
Odroid-C1 460 325 147

Raspberry Pi 2 Model B Review    @ http://Mikronauts.com

(click on image for larger version)

Shorting the “off” header on the ODROID C1 apparently turns it totally off, to 0mA.

The A+ is still the most miserly with power when running, and the ODROID C1 and Banana Pro use the most power, closely followed by the new Raspberry Pi 2 Model B.

Support

There is no arguing that the Raspberry Pi has the most active forum of all of the single board computers, and provides excellent community support. When community support is not enough, then Raspberry Pi Foundation employees and volunteers jump in and help. The only down side is that the sheer volume of postings gets to be a bit overwhelming at times, but new users are more likely to find their questions answered before they even ask – if they read the FAQ’s and search the forums.

Of the other single board computers mentioned in this review, I’d say that the Odroid forum are the next most active, and Hardkernel staff also provides great support, and are very active in tracking down and fixing issues found with the ODROID C1.

The Lemaker forums are good, and Lemaker staff responds quickly, but the volume of posts is lower. Both the Odroid and Lemaker forums are more technical user oriented, with few beginners.

Conclusion

NO ONE expected the Raspberry Pi 2 Model B. (I wish they had called it the Model C … I find the new name awkward)

I am quite impressed with how snappy the new Pi is – the older model Pi’s are painfully slow when browsing the web, compiling large programs, or doing any heavy work, while the Raspberry Pi 2 Model B is pleasantly fast.

Previously I would not recommend a Raspberry Pi as a desktop replacement or general purpose computer, as it was too slow for such use, while still being fast enough for education.

Now, I can recommend the Raspberry Pi 2 Model B as a general purpose computer.

While the ODROID C1 generally out performs the Raspberry Pi 2 Model B, it does not have the camera and LCD connectors, nor analog audio out. Mind you, the Pi does not have Gigabit Ethernet, eMMC, RTC, IR input, or an extra serial console.

Neither the Raspberry Pi 2 Model B nor the ODROID C1 have SATA, however the Banana Pro has both Gigabit Ethernet and SATA, which is a huge advantage for small servers.

I have absolutely no doubt that the new Raspberry Pi 2 Model B will sell like the proverbial hotcakes, as it is not only a great little computer for education, but is also a great little general purpose computer.

What I liked:

  • quad core performance
  • 1GB LPDDR2
  • price
  • camera CSI connector
  • LCD DSI connector
  • good Raspbian compatibility

What I did not like:

  • no SATA
  • no Gigabit Ethernet
  • no eMMC
  • no RTC
  • changes needed for all GPIO libraries
