Raspberry Pi 4.3″ EastRising HDMI TFT LCD Review and Experiments
Trying a custom 960×544 HDMI mode with a 480×272 panel

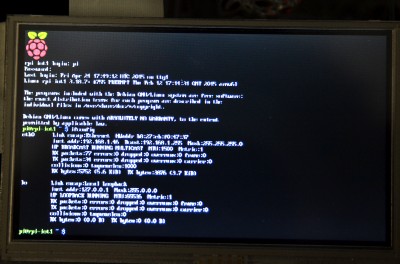

After changing /boot/config.txt I was carefully watching the Raspberry Pi reboot:
(click on the image for larger version)
Definitely better than the 1080p scaling, but still not really clear enough for use.

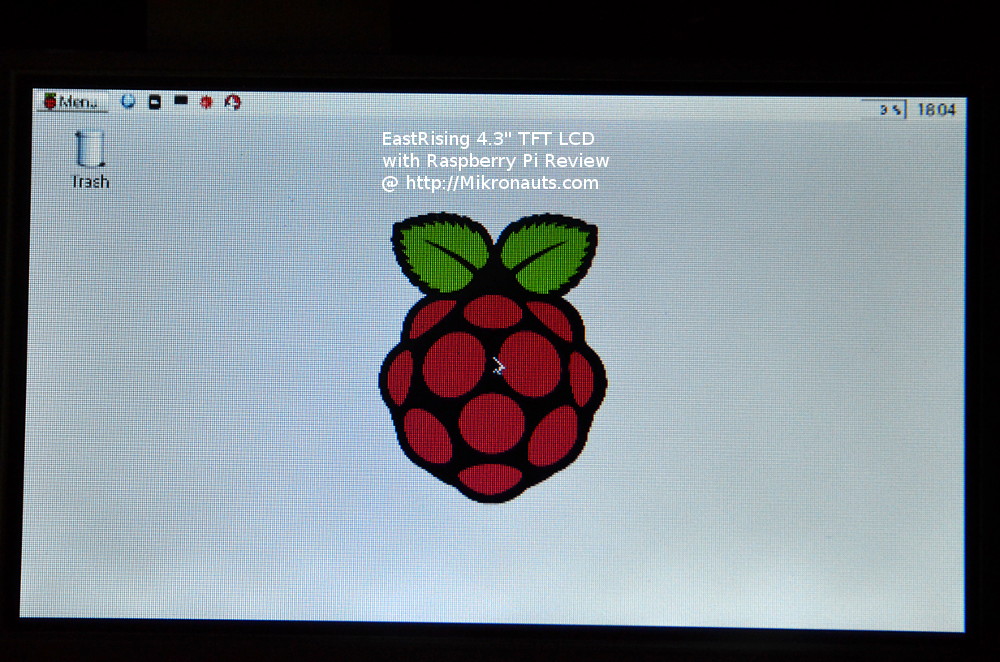

How about the desktop?
(click on the image for larger version)
Not bad at all!

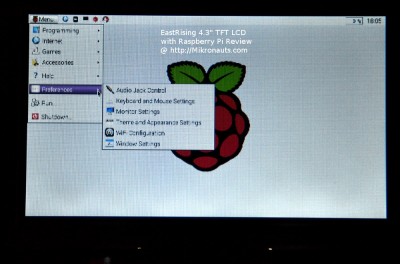

How about the start menu?
(click on the image for larger version)
It was quite readable, better than the photo.

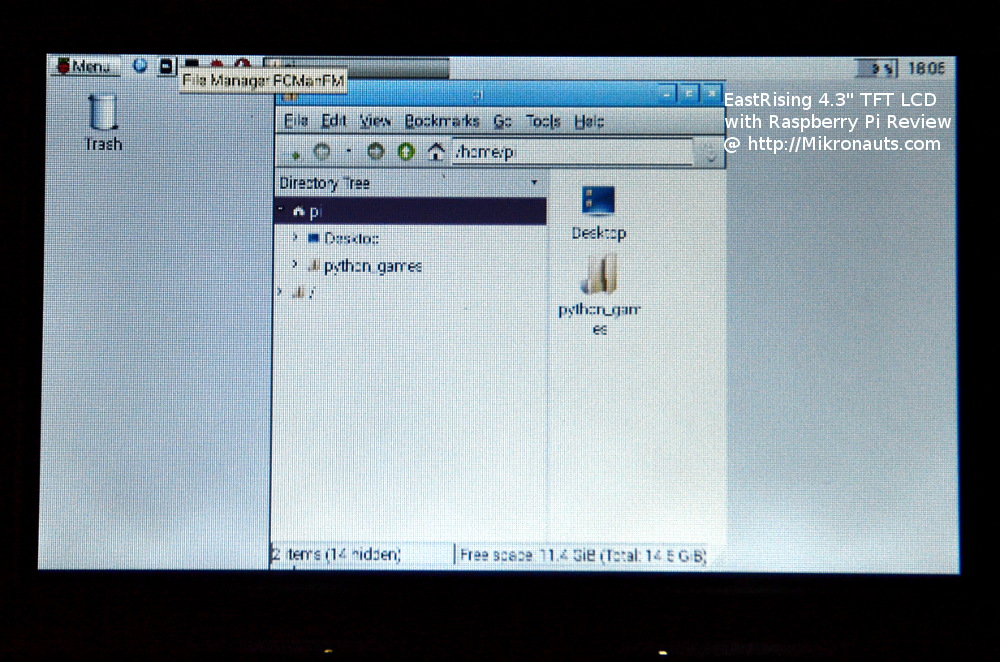

How does the file manager look when scaled to 960×544?
(click on the image for larger version)
The text is not great due to the small font, but overall, it is usable!

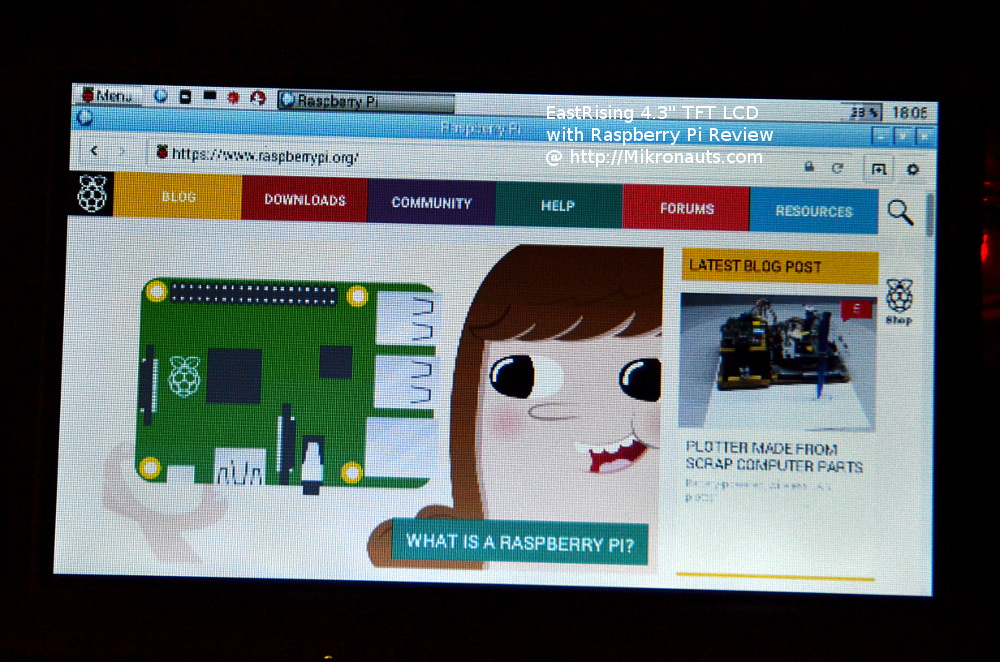

How does raspberrypi.org look?
(click on the image for larger version)
Pretty good! I’d say it was usable.

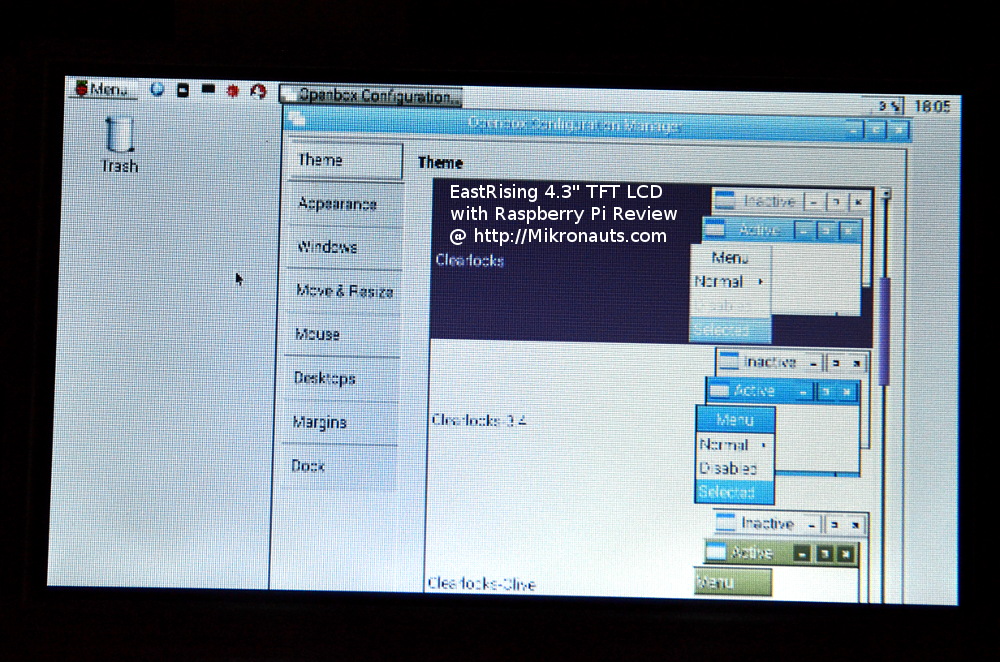

What about the window settings? It was unusable at 480×272.
(click on the image for larger version)
If we could only scroll the desktop it would be quite usable.

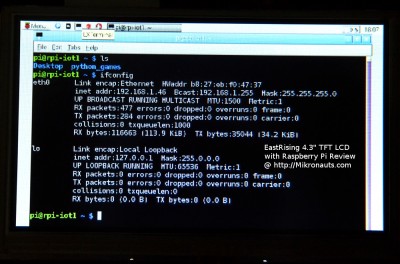

How about LXTerminal?
(click on the image for larger version)
Quite usable! Especially if you reduce it to 20 lines of text.

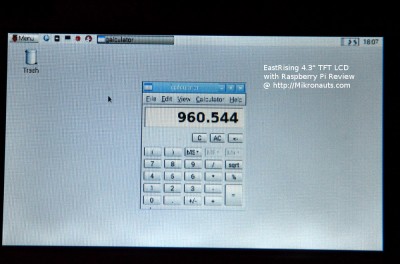

I wonder… would the calculator be usable?
(click on the image for larger version)
YES, it is usable.
I’d say using a scaled 960×544 mode is quite useful, especially for desktop / web applications.
The little HDMI to LCD adapter board is quite impressive in my opinion.
I wonder if 480×544 might even be better?
