Raspberry Pi 4.3″ EastRising HDMI TFT LCD Review and Experiments
Trying a custom 480×544 HDMI mode with a 480×272 panel
After looking at the compressed 1920×1080, uncompressed 480×272, and compressed 960×544 results, I noticed that vertical compression does not degrade text as much as horizontal compression.
Let’s see if 480×544 is useful for the console:
(click on the image for larger version)
Ok, that is definitely closer to usable – but for console use, stick to 480×272 for best results.

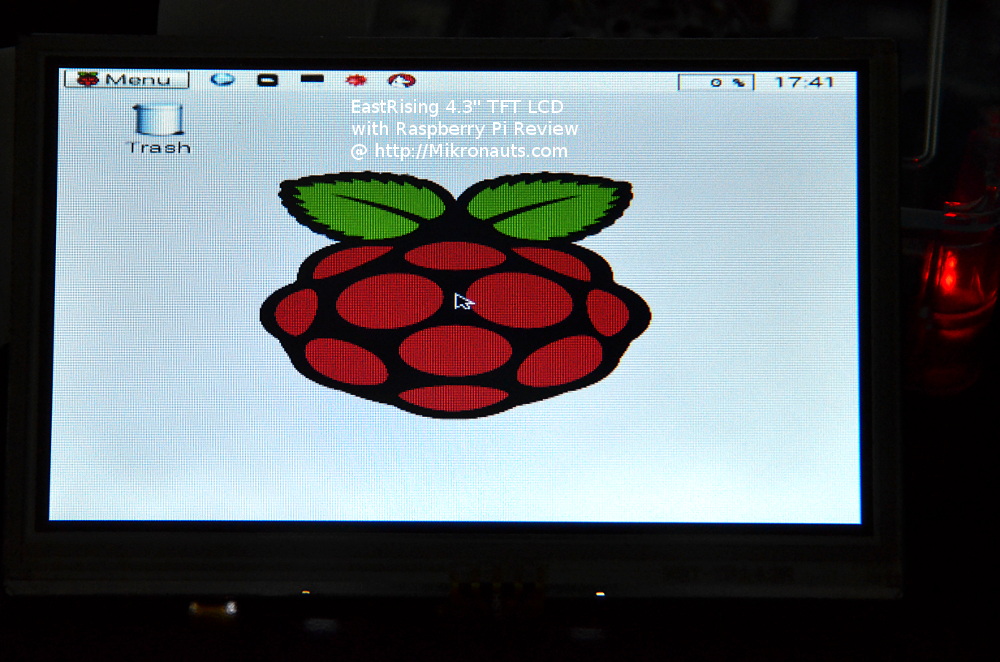

How about the desktop?
(click on the image for larger version)
That is actually quite good!
(click on the image for larger version)

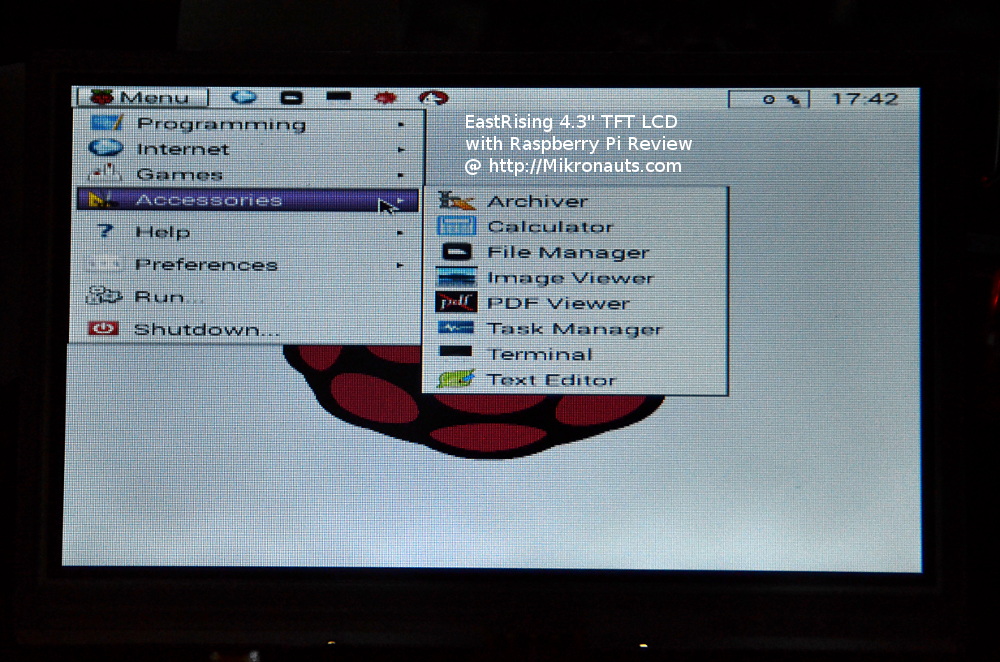

The menus were good too!

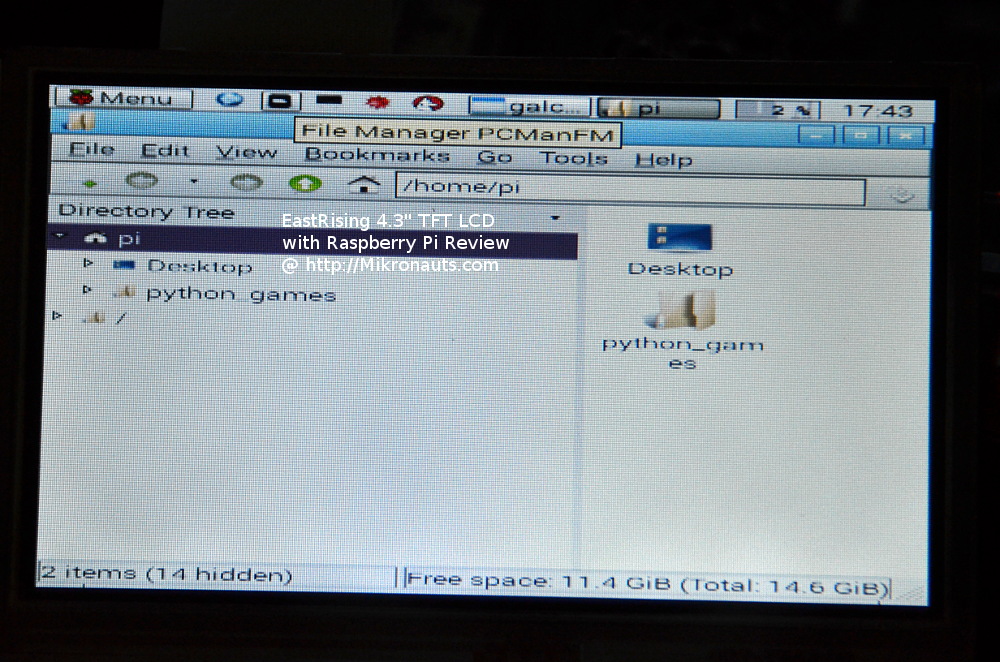

How about that pesky file manager with its small fonts?
(click on the image for larger version)
YES! It is very usable, pretty good in fact.
Looks my hypothesis is paying off!

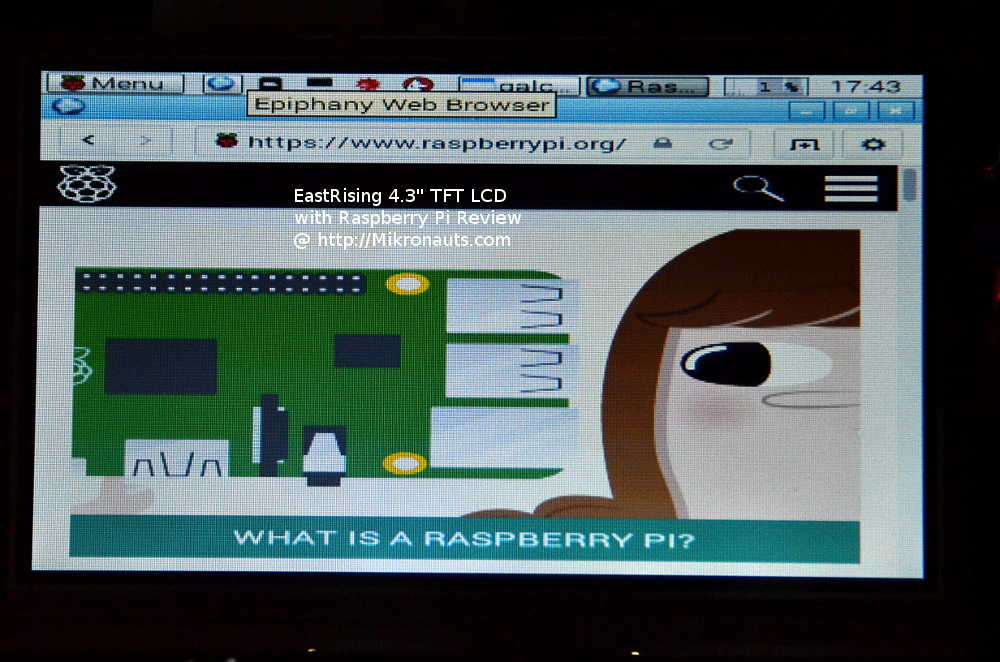

I wonder if raspberrypi.org will look good enough to be usable?
(click on the image for larger version)
Ok, a bit narrow, but I would say usable – with readable text.

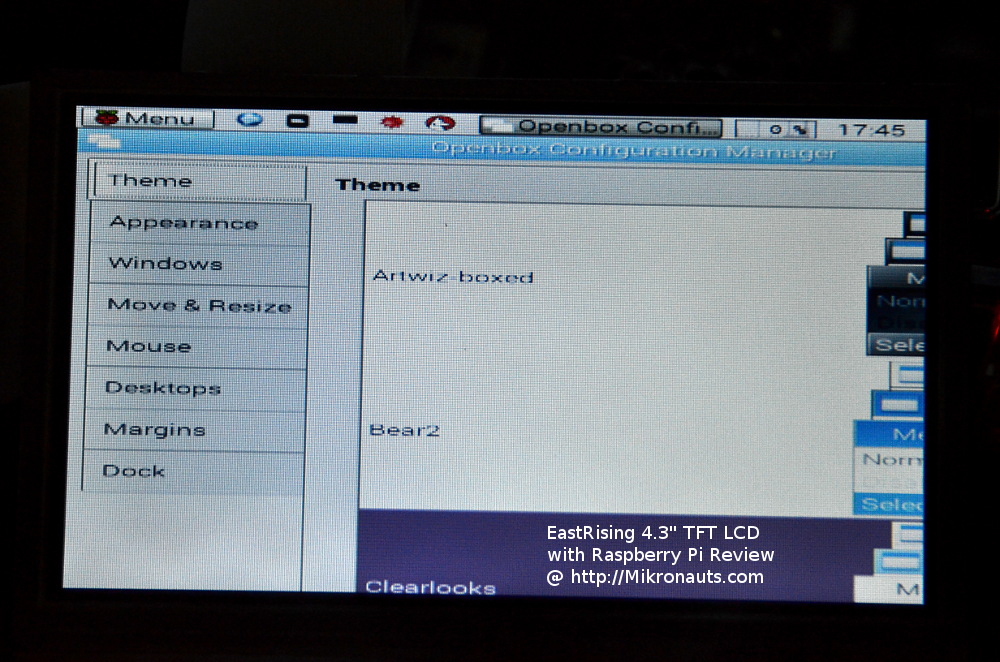

I’ll try window settings, although I know it won’t work well:
(click on the image for larger version)
As I thought – useless, due to not being able to shrink its window, or scroll a virtual desktop.

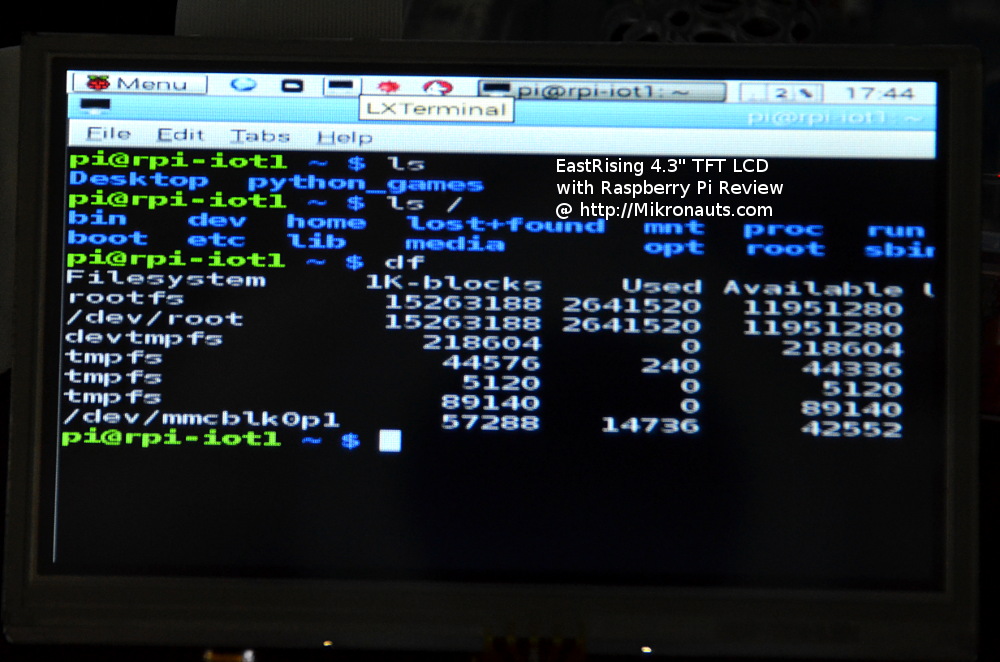

Hmm… I wonder how LXTerminal will fare?
(click on the image for larger version)
Very usable, though best at 44×20 with this font.
I am quite pleased at how my 480×544 experiment turned out – it is quite usable for the desktop.
