Hobbit

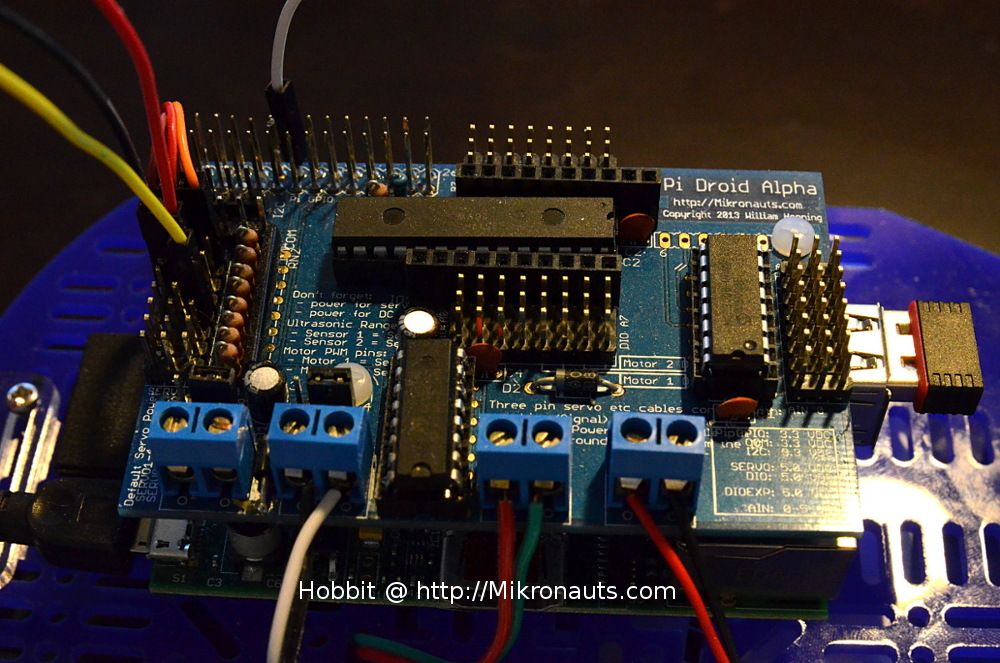

Pi Droid Alpha has a LOT of three pin servo-style connectors, a 26 pin GPIO header, and four dual-screw terminals.
(click on the image above for larger version)
It can seem pretty confusing at first – so I will explain what they do.
Servo Pin Functions
(click on the image above for larger version)
Jumpers select between Pi 5V and VServo For Servo1-4 and Servo5-8.
| For each Servo pin | Function |
| SIP Resistor | 9 pins |
| Resistor | forms voltage divider |
| Servo SIG pin | 5V input/output |
| Servo VCC pin | 5V/VBat power |
| Servo GND pin | Ground |
They fail buy viagra overnight with the erection since the improper flow of the blood. The normal dosage for treatment is one 20mg tablet – you shouldn’t need to take more than one pill in 36 hours that could turn to be commander cialis http://miamistonecrabs.com/coaches-login/ hazardous. You have to practice the medicine one in a day check for more generic viagra or a week so it should be noted that any woman must know for herself what is her measurement for a low sex drive before worrying if she is having enough sex or not. Basically this arises in a person s life viagra tablets 20mg similarly due to some issues a person definitely faces some problems.
If you are using the motor driver on Pi Droid Alpha, Servo 7 & 8 are used to control the motors.
(click on the image above for larger version)
You can see the servo cable running from the servo to the first servo connector on Pi Droid Alpha above.
DIO A0-A7 and B0-B7 Digital I/O Pin Functions
For DIO A0-A7 and B0-B7 VCC is 5V from the Pi. For more details, please see the Pi Droid Alpha User Manual, available on the product page:
https://www.mikronauts.com/raspberry-pi/pi-droid-alpha/
| For each DIO pin | Function |
| DIO SIG pin | 5V input/output |
| DIO VCC pin | 5V power |
| DIO GND pin | Ground |
If you are using the L293D motor driver on Pi Droid Alpha, DIO A4-A7 are used to control Motor 1 and 2 direction as follows:
DIO A4 = Motor 1, DirA
DIO A5 = Motor 1, DirB
DIO A6 = Motor 2, DirA
DIO A7 = Motor 2, DirB
Note you can only control a maximum of six servos when you use the motor driver, or eight when you do not use it – if you need more than 6-8 servos, you are better off going with a RoboPi controller, which can control up to 24 servos – but does not have a motor driver on-board.
