The Better MouseTrap Servo Tester
May 28, 2014

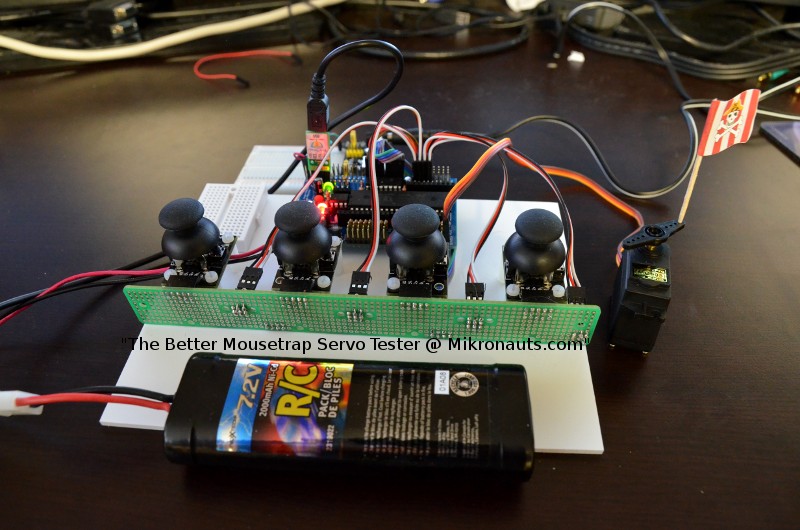

I decided to add a small breadboards to “The Better Mousetrap Servo Tester” (abbreviated TBMST) in order to let me add small test circuits – you can see it behind the leftmost joystick:
(Click on the image to see a larger photo)
Then after thinking about it, I decided to add a second small breadboard behind the rightmost joystick – this allows me to move the breadboard powersupply to the rightmost small breadboard, and I will no longer have a “dangling” off-board breadboard with the power supply on it!
(Click on the image to see a larger photo)

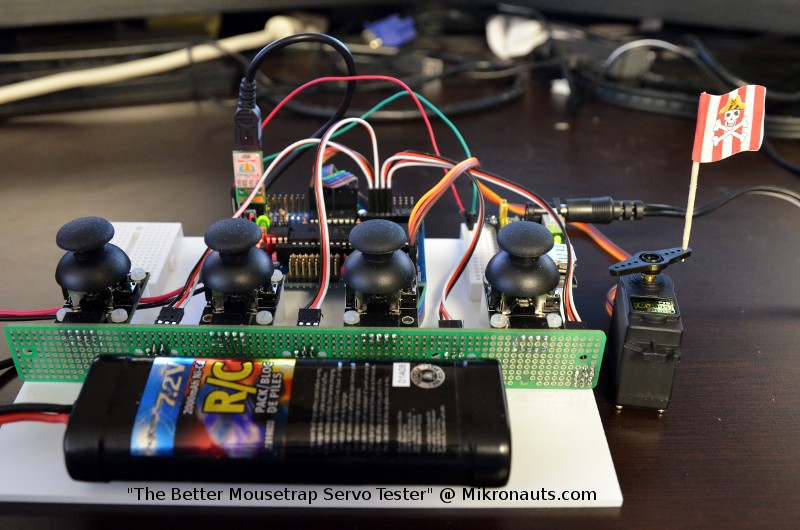

Here is a close-up shot – now does that not look much better?
(Click on the image to see a larger photo)
