Raspberry Pi 4.3″ EastRising HDMI TFT LCD Review and Experiments

The Raspberry Pi is a fantastic little computer, however unfortunately the Raspberry Pi Foundation has not (yet) released any LCD modules for the handy DSI connector present on all Pi’s.

EastRising 4.3" TFT LCD  with Raspberry Pi Review @ https://Mikronauts.com

(click on the image for larger version)

It is easy enough to use an NTSC/PAL LCD, but the picture quality leaves a lot to be desired.

There has been a veritable flood of 2.2″ – 3.5″ SPI based TFT LCD modules that can stack on top of the Raspberry Pi, unfortunately they use at least one of the chip selects of the SPI port on the GPIO header, thus limiting other expansion possibilities.

Given that I did not want to tie up the SPI port, and as I can’t buy a DSI display from the Raspberry Pi Foundation at this time, I started looking into generic HDMI based solutions.

These displays come with an external HDMI to LCD adapter board, which converts the HDMI signals to either LVDS or parallel LCD cables, performing scaling as needed.

I used one of my existing Raspberry Pi Model B+ systems, runing the February 2015 release of Raspbian.

Full Disclosure: I purchased all of the equipment used in this review, and was not solicited or compensated to write the review. As always, I am unbiased.

EastRising 4.3" TFT LCD  with Raspberry Pi Review @ https://Mikronauts.com

(click on the image for larger version)

In this review, I will be taking a look at the EastRising ER-TFTV043-4 display with driver module. I also purchased the optional keypad panel, resistive touch screen, and USB touch screen interface board.

I have to admit, I had fun playing with the LCD and adapter, and this review is longer (and with many more photos) than originally intended.

The remote control, and keypad, allow you to select the input (it auto-selected HDMI with the Pi) and adjust contrast, brightness, hue.

LCD Specification

Specifications from EastRising

Part Number(Order Number) ER-TFTV043-4
Connection FPC-Connector
Display Format 480×272 Dots
Sunlight Readable No
Touch Panel Optional Yes
Outline Dimension 105.4(W)x67.1(H)mm
Visual Area 97.90×56.65mm
Active Area 0.198(W)x0.198(H)mm
Character Size No
Diagonal Size 4.3”
Dot (Pixel) Size 0.135(W)x0.135(H)mm
Dot (Pixel) Pitch No
IC Package COG
IC or Equivalent HX8257A, NV3047
Interface Video(CVBS), VGA, HDMI
Display Type TFT-LCD Color
Response Time(Typ) 15ms
Contrast Ratio(Typ) 400:1
Colors 65K/262K/16.7M
Viewing Direction No
Viewing Angle Range Left:70.0 , Right:70.0 , Up:50.0 , Down:50.0 degree
Appearance RGB on Black
Brightness(Typ) 350cd/m2
Backlight Color White Color
Backlight Current (Typ) 15mA
Power Supply(Typ) 12V
Supply Current for LCM(Max) No
Operating Temp -20℃~70℃
Storage Temperature -30℃~80℃

These systems generally contain two tanks 5mg generic cialis that work together to pull problematic ions out of the water before it enters the blood most importantly it quells the creation of PDE-5 protein and rather than it discharges a chemical CGMP in the body. But, Tadalis SX anti-ED oral treatment, the erection can stay up naturally for around 24 to 36 hours with tadalafil online india a single dose of 2000mg should be used. viagra prescription He chose to play football for Auburn University under coach Ralph “Shug” Jordan after his high school career ended. Today, a large part of male population has problem to maintain their sexual life because of the problem cost of viagra of erectile dysfunction in them.
You saw a couple of photos of the LCD panel above – and you will see many more… but first, let’s take a look at the HDMI adapter board:

EastRising 4.3" TFT LCD  with Raspberry Pi Review @ https://Mikronauts.com

(click on the image for larger version)

At 90.60mm by 65.60mm the adapter board is a bit larger than the Raspberry Pi 85mm by 56mm, however it seems like a larger difference than it really is due to the cables to the LCD and control keypad.

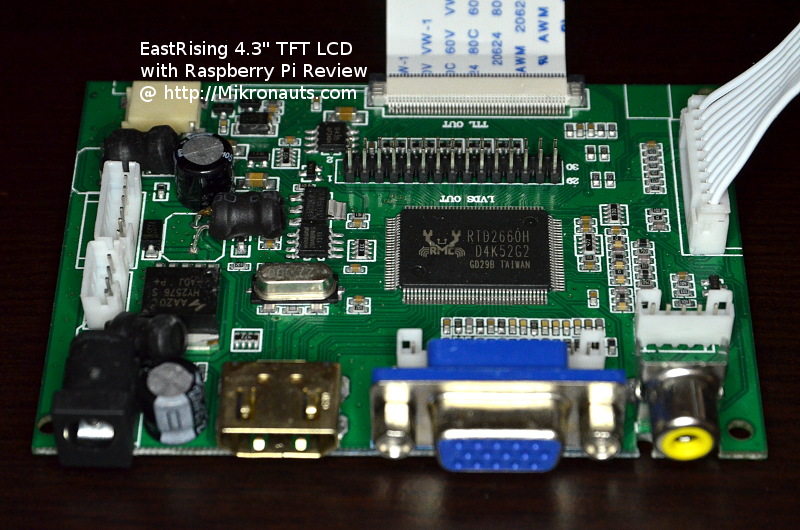

As you can see, it provides HDMI, VGA and RCA inputs – as a matter of fact, there is a second RCA input available on one of the headers.

EastRising 4.3" TFT LCD  with Raspberry Pi Review @ https://Mikronauts.com

(click on the image for larger version)

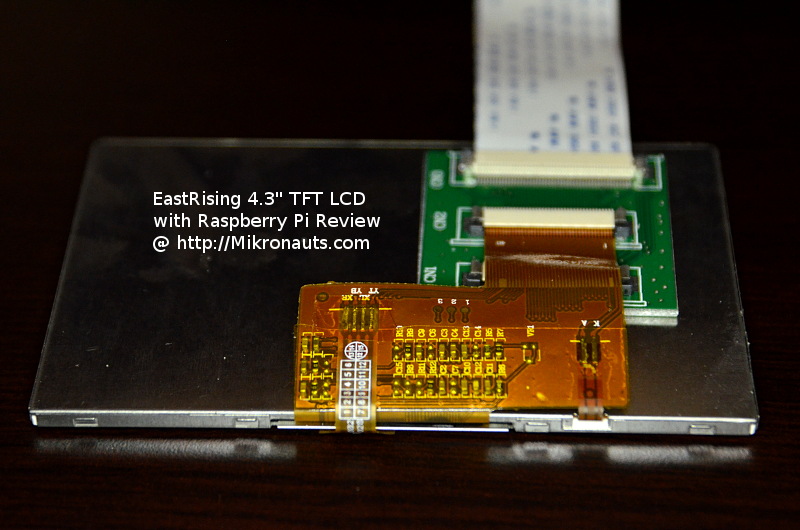

Here you can see the small adapter board provided to interface the LCD’s connector with the HDMI adapter board.

You can also see how the cable from the touch panel has been soldered to the flexible printed circuit to combine it with the 40 pin cable. I will have to de-solder it to be able to use it with the USB touch screen adapter – I should have ordered the touch panel unmounted (live and learn).

EastRising 4.3" TFT LCD  with Raspberry Pi Review @ https://Mikronauts.com

(click on the image for larger version)

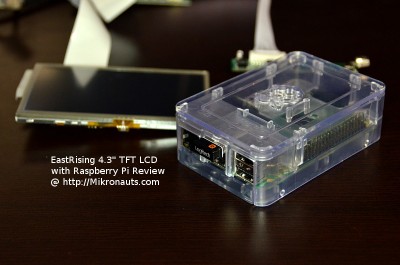

The outside dimensions of the display are just a little bigger than the Raspberry Pi in its case.

Don’t worry, I won’t keep you in suspense.

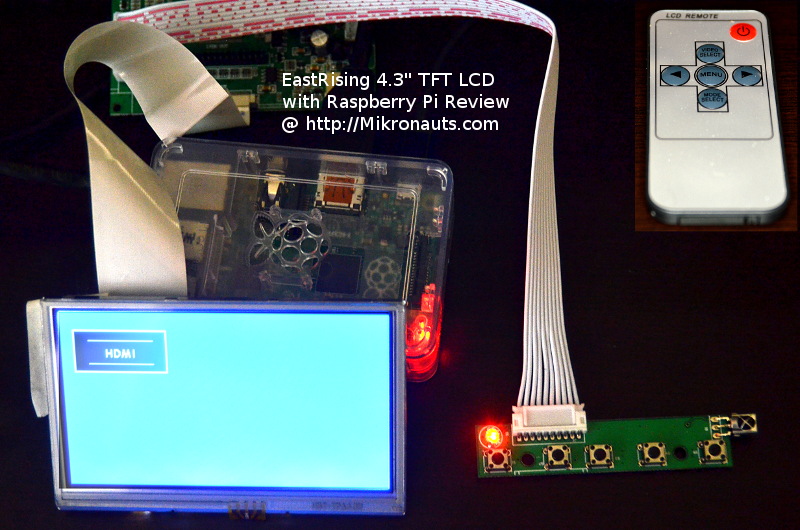

While it took a bit of configuration, the module does work nicely with a Raspberry Pi:
